• MD-3DQC
  • MD-µQC
  • µQC BORESCOPE

The MD-3DQC RollScope is ideally suited for the package printing industry. It provides cell volume measurement that is critical to achieving accurate color results and eliminating costly press downtime. Truly versatile, the MD-3DQC can be used for anilox, gravure, flexo-plate, etched gravure and laser gravure; all in one instrument!

Learn More

The MD-µQC provides the ultimate in measurement flexibility. Its weight of only 2.2 kilograms makes it perfect for use with robotic arms and CMM heads allowing for true “hands free” operation for fully automated part evaluation. Truly adaptable, it is the ideal surface roughness measurement compatible with x/y, x/y/z and x/y/z/alpha/beta base systems.

Learn More

The µQC BoreScope is unique. Used as an objective for the µQC it is able to take non-contact surface roughness measurements of the interior surfaces of a bore as small as 6mm wide and up to a depth of 50 mm deep. It is no longer necessary to use a profilometer style stylus which damages the surface, and still gives inconsistent results in only one direction.

Learn More

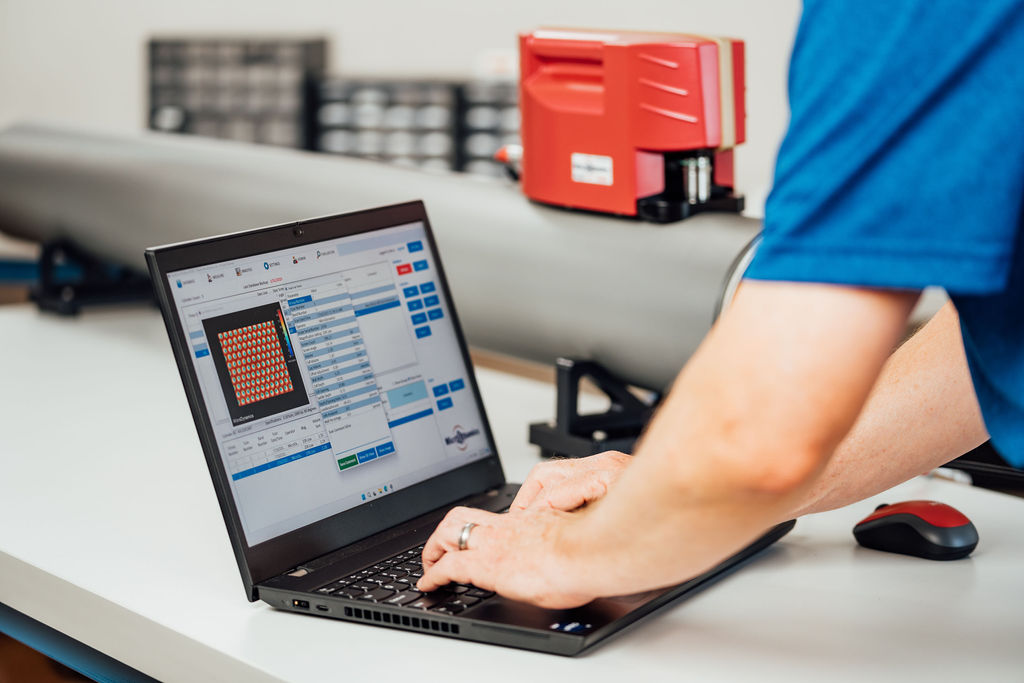

MicroScan™ Software

All MicroDynamics' inspection microscopes are operated using the sophisticated MicroScan™ software. Robust and adaptable, our proprietary software provides rapid results that are accurate and repeatable to +/- 50nm. The MicroScan™ software not only controls the function of the instruments, but also incorporates numerous measurement, reporting and database features for additional process control benefits. A suite of industry specific post processors further enhances the capabilities of the system.

MicroScan™ Reporting

The single and multi-page reporting function allow for totally customized output with the ease of printing letterhead. The internal database allows up to 65 fields per record, plus the 3D data and up to 13 images. This unmatched versatility provides the ability to compare records, export data, track inventories and create stunning and useful report documents.



Independent Studies Prove the 3DQC is Best!

A recent study conducted by the Flexo Quality Consortium found the 3DQC to be the most reliable and repeatable method for measuring anilox cell engravings. In this study the 3DQC was ranked first and found to provide reliable and consistent volume inspection.
